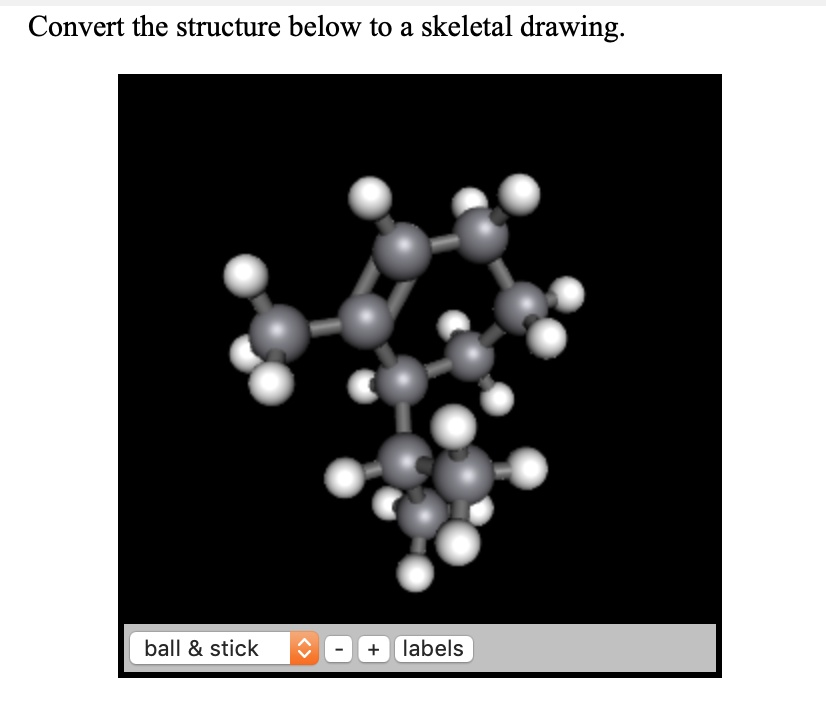

Convert the structure below to a skeletal drawing.
The Correct Answer and Explanation is:
Here’s the skeletal drawing you requested.
In organic chemistry, skeletal structures (also known as line-angle formulas) are a simplified way of representing molecules. They omit carbon and hydrogen atoms bonded to carbon, focusing instead on the connectivity and geometry of the molecule. Each vertex or line end represents a carbon atom, and hydrogen atoms are assumed to be present to satisfy carbon’s valency of four.
This representation is especially useful for complex organic molecules because it reduces visual clutter and highlights the molecular framework. For example, instead of drawing out every carbon and hydrogen atom in a long hydrocarbon chain or ring, a skeletal structure uses straight lines to represent bonds between carbon atoms. Double and triple bonds are shown as double or triple lines, and heteroatoms like oxygen, nitrogen, or halogens are explicitly drawn with their attached hydrogens if necessary.
The skeletal drawing also conveys stereochemistry when needed. Wedges and dashed lines indicate bonds coming out of or going behind the plane of the page, respectively. This is crucial for understanding the three-dimensional arrangement of atoms, which affects the molecule’s reactivity and interaction with biological systems.
When converting a full structural formula to a skeletal one, the key steps include:
- Identifying all carbon atoms and their connectivity
- Omitting hydrogen atoms bonded to carbon
- Drawing lines for bonds between carbon atoms
- Including heteroatoms and their attached hydrogens explicitly
This method is widely used in textbooks, research papers, and professional practice because it provides a clear and concise depiction of molecular structures. It’s a foundational skill in organic chemistry that enhances both communication and understanding of molecular architecture.
